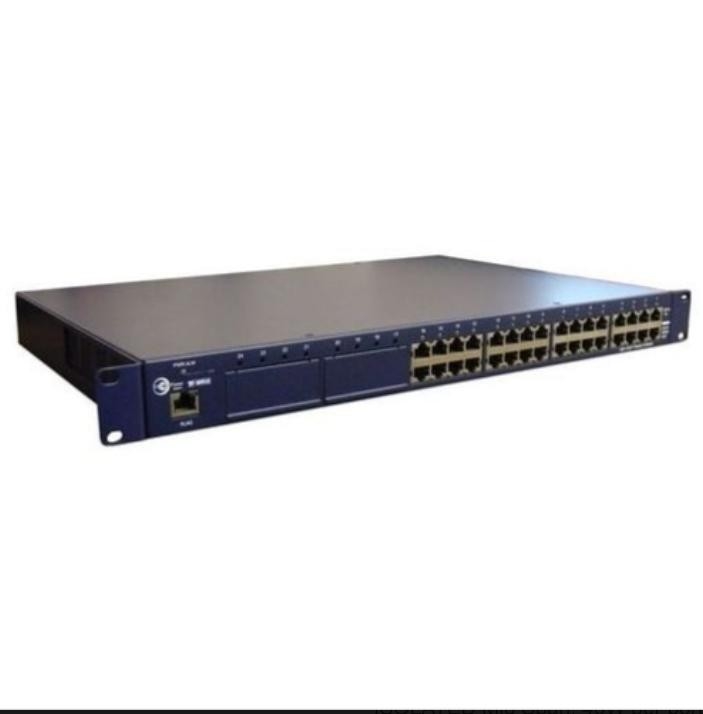

MODEL: TP-MS616-ISO

The TP-MS616-ISO rack mount 16-port mid-span PoE power sources (PoE Injector) are designed to supply PoE and data to up to 16 devices simultaneously, making them ideal for central locations such as operations rooms or equipment cabinets. Moreover, these PoE devices feature a separate data-in port paired with a data-out/PoE port, ensuring streamlined connectivity. The PoE function is fully IEEE802.3at/af compliant and supports Gigabit Ethernet, allowing for compatibility with a wide range of devices.

Furthermore, the included PC software enables easy configuration of individual ports while displaying port status through the RJ45 management port or network. This software allows users to enable or disable ports, as well as configure them for forced PoE output (Passive PoE) or IEEE802.3at/af detection as needed. Additionally, with PoE DC Voltage (55V) supplied on 4 pairs, the unit delivers powerful performance and ensures reliable power delivery to connected devices.

Moreover, the maximum power output per rack mount unit reaches an impressive 516W (AC Powered) or 258W (DC Powered), making it suitable for high-powered devices. Individual outputs are protected against overloads and short circuits, enhancing the reliability and safety of the connected devices. This protection ensures that each device receives stable and consistent power, reducing the risk of damage or downtime.

Additionally, the 1U rack-mount design fits standard 19″ racks with the included brackets, providing flexibility and ease of installation. This design allows for quick and seamless integration into existing network setups, making it an ideal choice for both industrial and commercial environments. The compact design also ensures that the unit occupies minimal space while delivering maximum performance.

In summary, the TP-MS616-ISO rack mount 16-port mid-span PoE power sources from Tycon Systems stand out as top-tier solutions for efficiently delivering PoE and data to multiple devices. Their combination of advanced features, robust construction, and user-friendly design makes them essential components for maintaining optimal network performance. Whether deployed in central operations rooms or remote equipment cabinets, these mid-span power sources guarantee uninterrupted power and data flow, providing exceptional performance and reliability.

Features

• PoE Injector
• IEEE 802.3at/af High Power Gigabit Midspan PoE Injectors
• Up to 40W per Individual Port
• 1U Standard Rack Mount (19”)
• Configuration and status thru front panel RJ45 port or thru network
• Supports non standard (Passive) devices
• Accepts AC or DC input
• Remotely Power Multiple Equipment thru CAT5 Cable up to 100m
• I.T.E. Power Supply, UL Listed

Applications

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems
• Power network devices from a central network room
